Solvent Recycling bags is used for solvent recovery equipment . It is use to reduce the amount of work required to dispose of still bottoms .
read more
Nylon Tube film is mainly used at carbon fiber forming process . It is a must for carbon fiber products . Such as bicycles , rackets etc.
read more
Perforated Release Films are placed between peel ply (if used) and the breather to allow volatiles and excess resin to bleed away.
read more

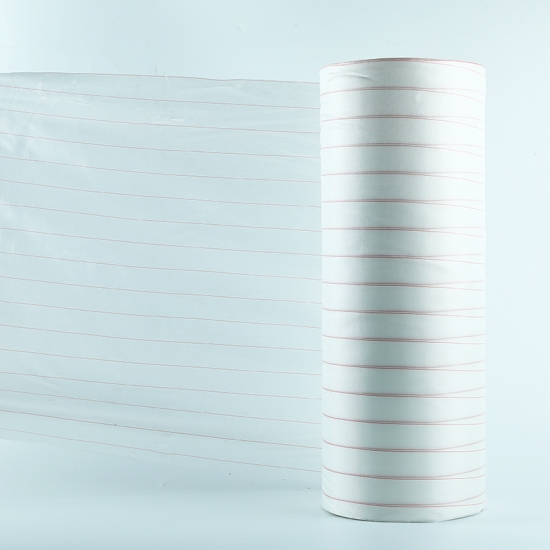

Peel Ply is a porous nylon fabric, with good drape ability. The fabric leaves a rough surface impression for priming and secondary bonding.
Under scoured and heat set process, the surface is very clean and the fabric is very strong which gives perfect release property, widely used in vacuum infusion process.
The fabric need to be stored in cool and dry warehouse and keep in original package.
Color White with Red Stripe
Raw Material Nylon 66
Temperature Resistance 200 °C (428°F)
Density 85 g/m2
Width 500m m
Length per roll 200 m
moq:
1 PC for testingservice:
Free sample is availablePayment:
T/T advancedLead Time：
7-30daysshipping port:
Xiamenproduct origin:
Xiamen
Nylon PA66 peel ply for Composite Process
Peel Ply fabric is a porous nylon fabric, with good drape ability. The fabric leaves a rough surface impression for priming and secondary bonding.
Under scoured and heat set process, the surface is very clean and the fabric is very strong which gives perfect release property, widely used in vacuum infusion process.
The fabric need to be stored in cool and dry warehouse and keep in original package.
Specification:
Color White with Red Stripe
Raw Material Nylon 66
Temperature Resistance 200 °C (428°F)
Density 85 g/m2
Width 1.8m
Length per roll 200 m
Surface treatment PTFE Coated
Alkali content Alkali Free
Yarn type E-Glass
Tensile strength >280N/M
Previous:
Vacuum bag sealant tapeNext:
Bleeder Breather Cloth Vacuum Bagging Infusion autoclave 60" width 150gsm fiberglass carbon fiber RTM
Vacuum bag sealant tape
Vacuum bag sealing tape is a visco-elastic tape with special synthetic rubber as base gum.
Bleeder Breather Cloth Vacuum Bagging Infusion autoclave 60" width 150gsm fiberglass carbon fiber RTM
Breather 1,Description Infusion media is a moderate-cost resin drainage media, widely used in vacuum infusion molding process, which can quickly penetrate the resin evenly to any part of the article, and squeezing the guide drift ets. 2,Properties of products Items Description Properties 1 Material Nylon non-woven 2 Temperature <220°C 3 Weight 150g/m2 4 Thickness 2mm 5 Colour white 6 Width 1500mm 7 Size 1500mm*100m*150g/m2 8 Storage Store in cool, dry place
Wholesale micro perforated pe release film pe film
Perforated Release Films are placed between peel ply (if used) and the breather to allow volatiles and excess resin to bleed away.
Vacuum bag sealant tape
Vacuum bag sealing tape is a visco-elastic tape with special synthetic rubber as base gum.
Thermostable Vacuum bagging film for wind blade
High temperature vacuum bag film has good elongation is developed for wind energy, marine application, suitable for curing temperatures up to 200 °C .
Perforated nylon release film for composites solution
Perforated Release Films are placed between peel ply (if used) and the breather to allow volatiles and excess resin to bleed away.
Thermostable nylon tube film used for rackets forming
Thermostable nylon film tube suitable for high temperature resin is for 150-220
Vacuum bagging film for forming of glass
Vacuum bag film with good elongation is developed for aeropnautial material , automotive,sports etc.
